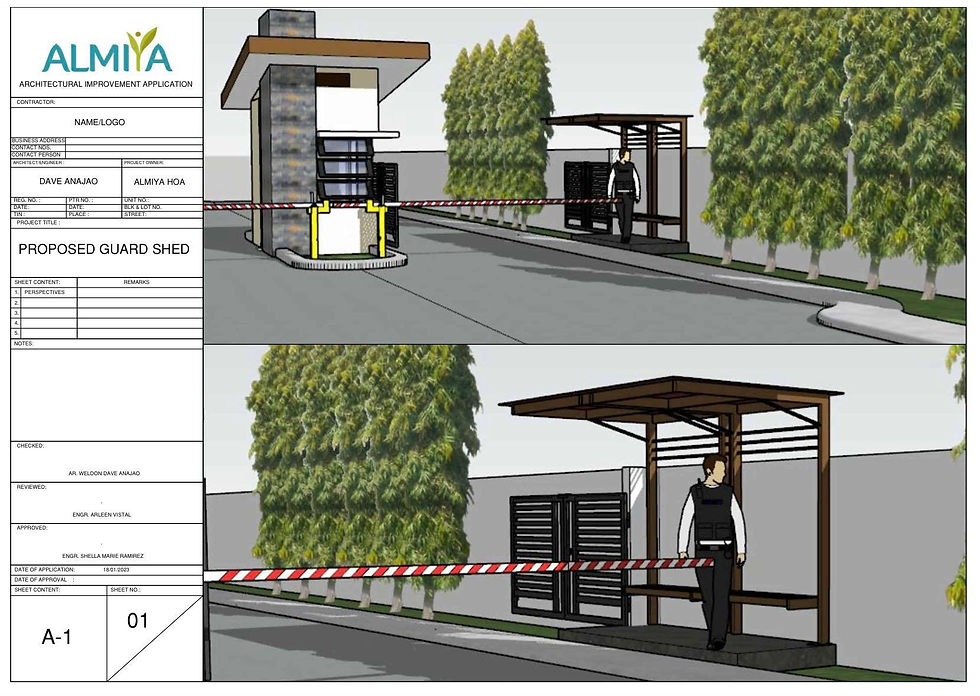

Almiya Waiting Shed Project
(Located near the guard house) The Almiya community needs a proper and safer waiting shed for vecinos to have a place for shelter from rain or from a very sunny weather. The existing tent will be replaced with a permanent structure.
The Waiting Shed will be a place for vecinos to rest while waiting for a ride and Almiya's security guards not to get wet during rains when receiving Grab drivers and delivery personnels. We continue to encourage our vecinos to support our village projects. Depending on the cost and current capacity of Almiya dues collection, we can double the length of the waiting shed to be more spacious.
Special thanks to Arch. Dave, Engr. Shella and rest of the BODs for the planning.
Feel free to let the admin knows if you have suggestions and comments. Thanks!
Budget (materials and labor): Php 45,192
Portland, Premium Cement, 40kgs
Wash Sand
3/4" Gravel
Def. Bar, 10mm dia. X 6.0m long, Gr. 33
G.I. Tie Wire No. 16
Rec. Hollow Section, 100mm x 50mm x 1.2mm thk x 6. 0m long
Rec. Hollow Section, 75mm x 50mm x 1.2mm thk x 6.0m long
Rec. Hollow Section, 50mm x 25mm x 0. 8mm thk x 6.0m long
Rec. Hollow Sec., 25mm x 25mm x 6.0m long
Corrugated, Longspan Coloroof (Color: Brown), 0.40 mm thk
Teck Screw, 2"
Sealant
Welding Rod, No. 3/32" China
Cutting Disk, 4"
Grinding Disk, 4"
Paint Thinner,
Paint Primer/Red Lead
Paint Enamel, Color: Brown (Finished), Bovsen
Paint Brush, 2"
Paint Roller, 3"
Solar Light, 2.5 watts
